DreamPrinting: Volumetric Printing Primitives for High-Fidelity 3D Printing

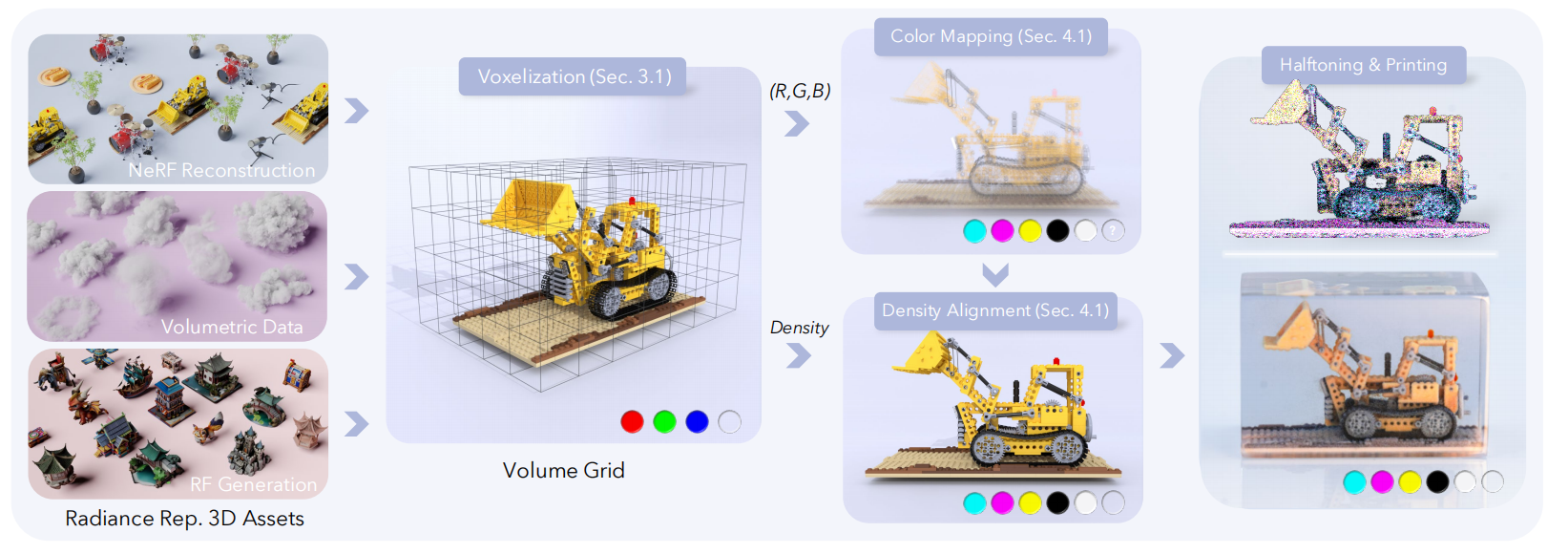

Translating the rich visual fidelity of volumetric rendering techniques into physically realizable 3D prints remains an open challenge. We introduce DreamPrinting, a novel pipeline that transforms radiance-based volumetric representations into explicit, material-centric Volumetric Printing Primitives (VPPs).

While volumetric rendering primitives (e.g., NeRF) excel at capturing intricate geometry and appearance, they lack the physical constraints necessary for real-world fabrication, such as pigment compatibility and material density. DreamPrinting addresses these challenges by integrating the Kubelka-Munk model with a spectrophotometric calibration process to characterize and mix pigments for accurate reproduction of color and translucency. The result is a continuous-to-discrete mapping that determines optimal pigment concentrations for each voxel, ensuring fidelity to both geometry and optical properties. A 3D stochastic halftoning procedure then converts these concentrations into printable labels, enabling fine-grained control over opacity, texture, and color gradients.

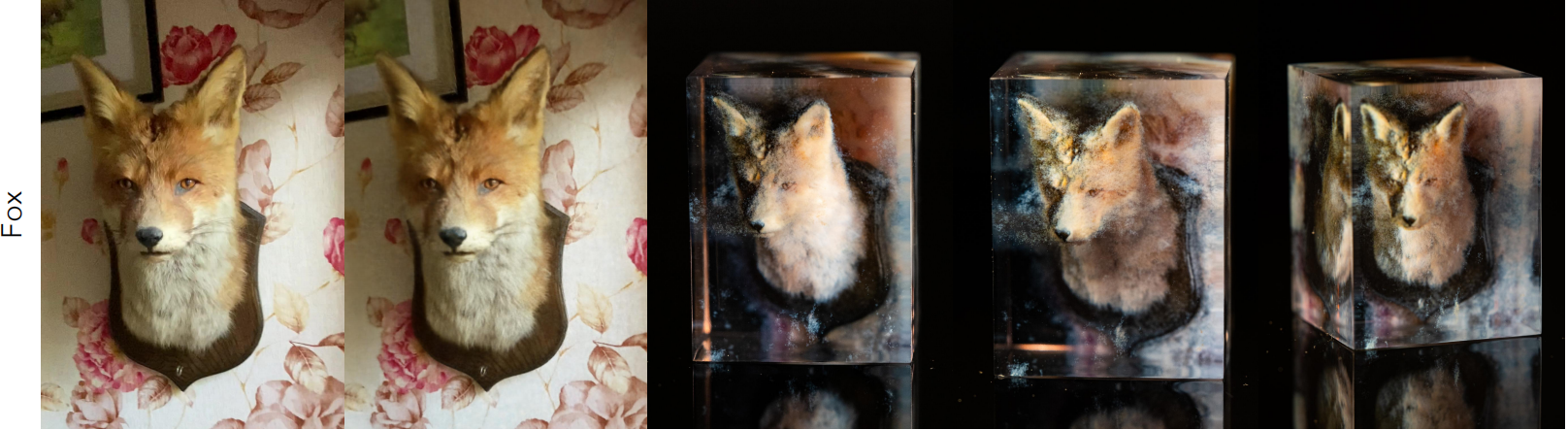

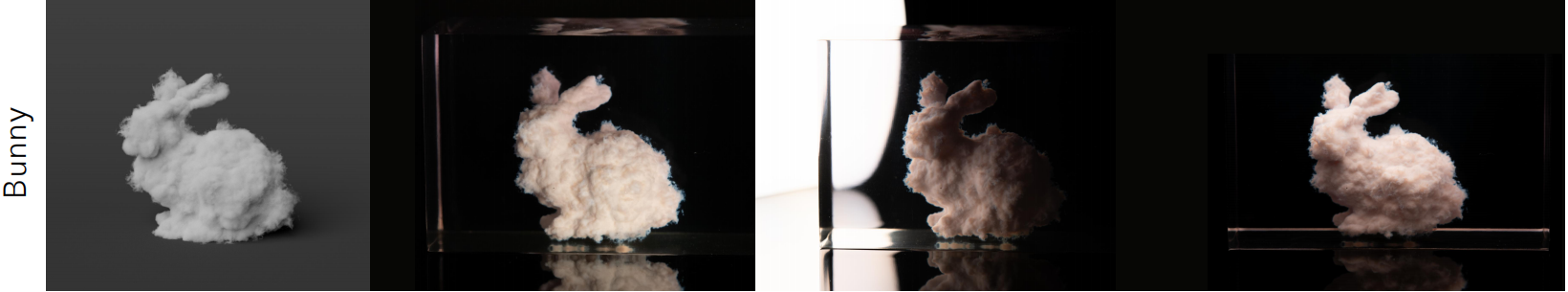

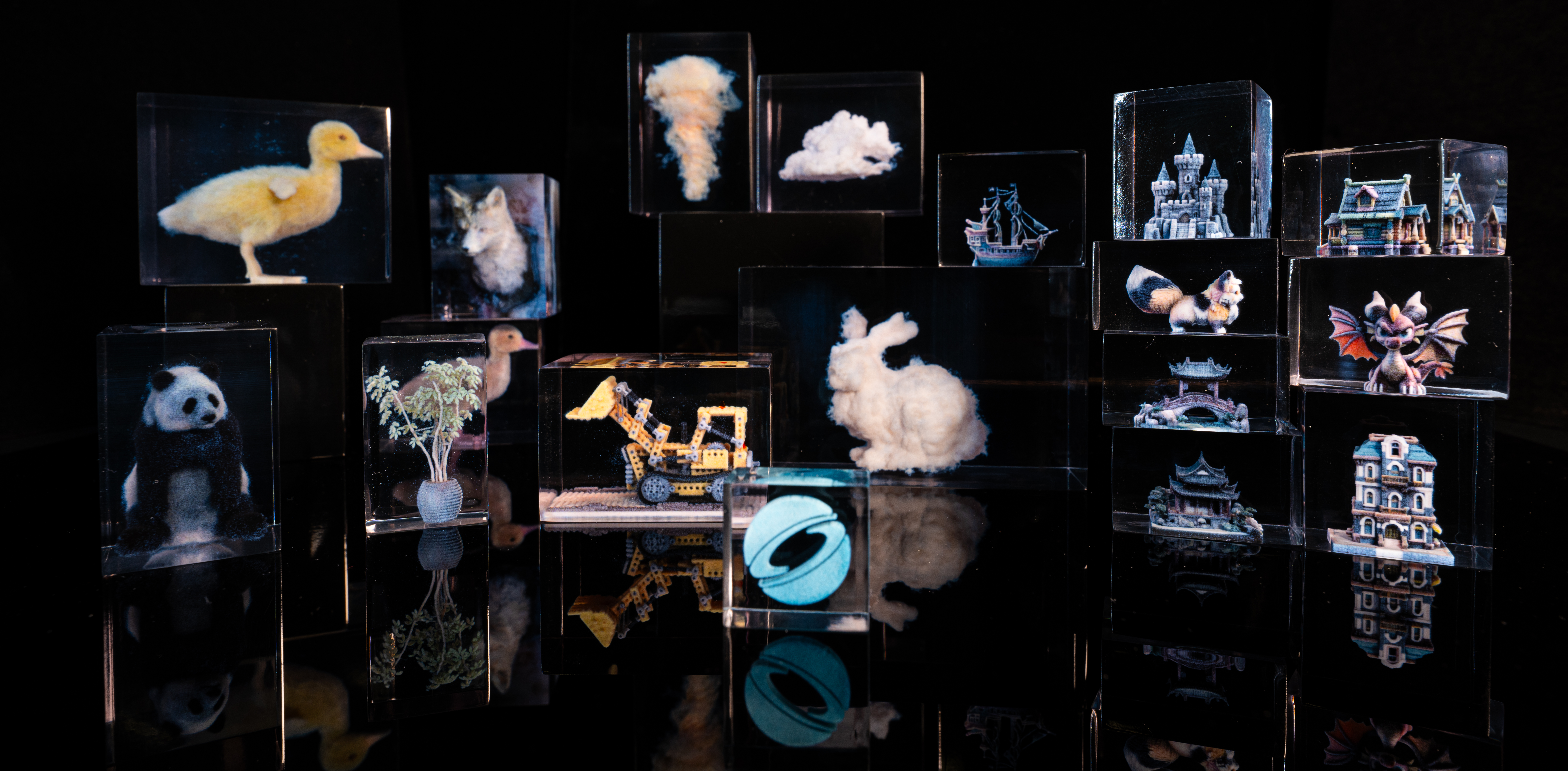

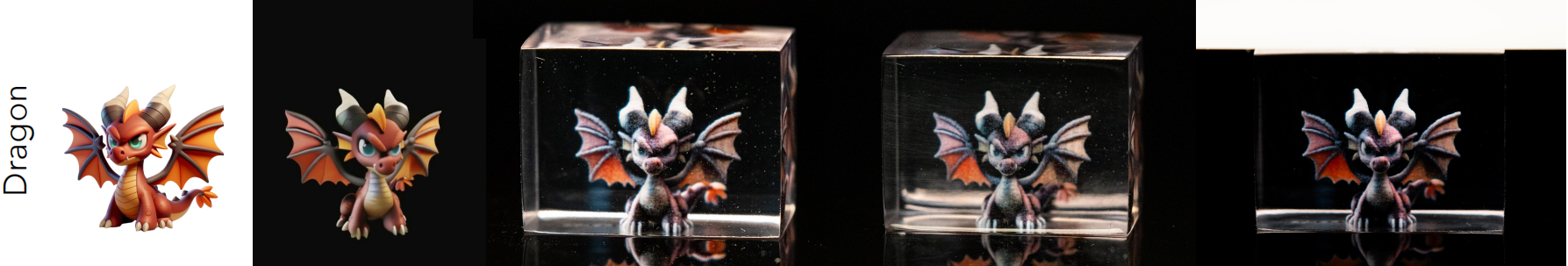

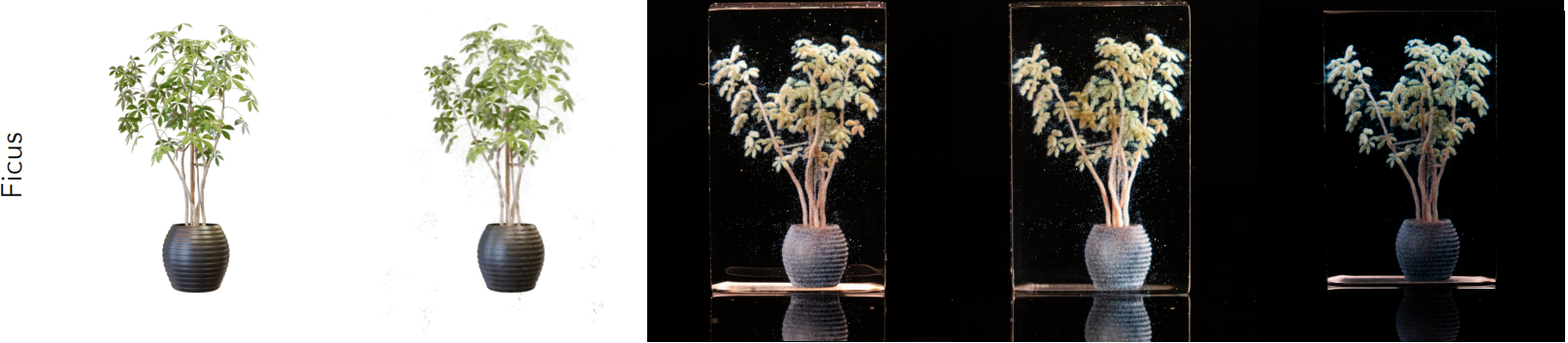

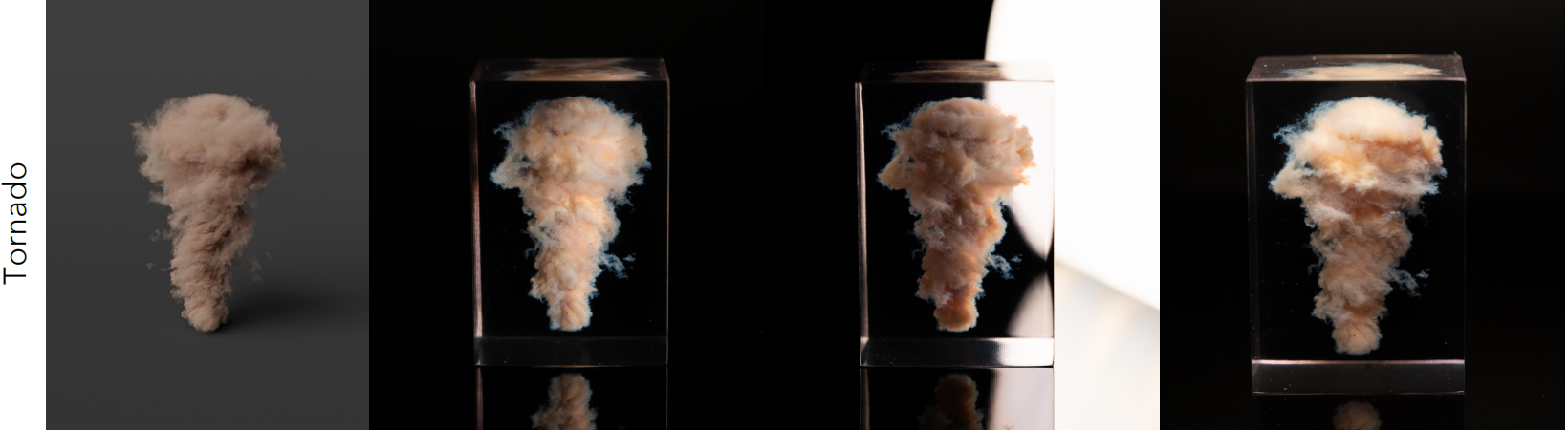

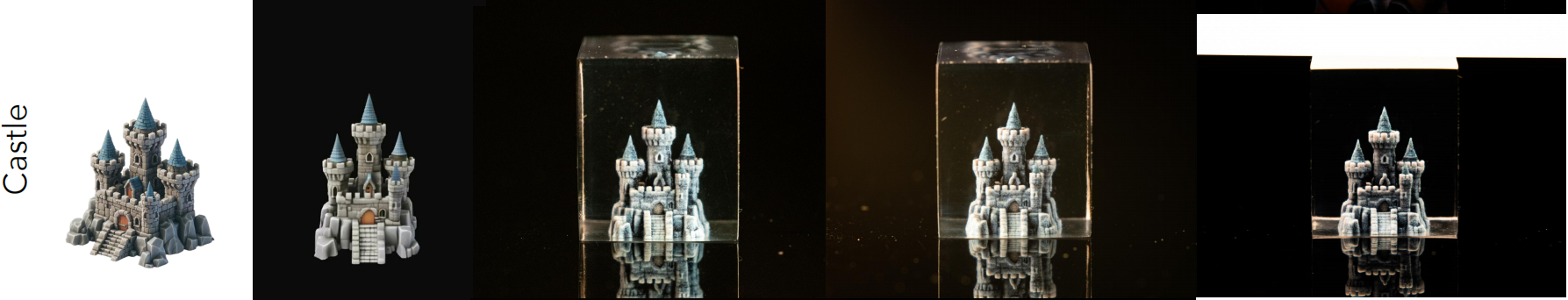

Our evaluations show that DreamPrinting achieves exceptional detail in reproducing semi-transparent structures—such as fur, leaves, and clouds—while outperforming traditional surface-based methods in managing translucency and internal consistency. Furthermore, by seamlessly integrating VPPs with cutting-edge 3D generation techniques, DreamPrinting expands the potential for complex, high-quality volumetric prints, providing a robust framework for printing objects that closely mirror their digital origins.
